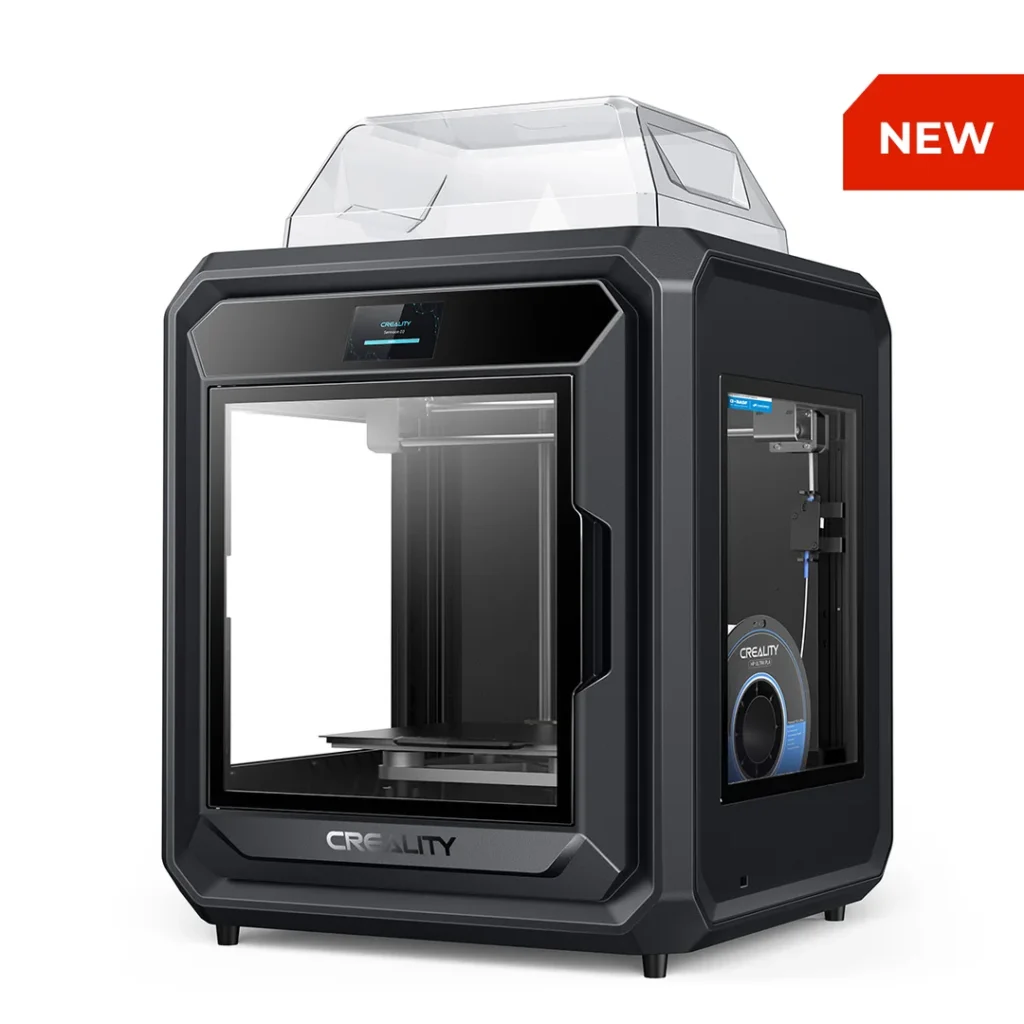

Creality Sermoon D3 Will Hit The Market Soon

This September, Creality announced something that is going to hit the market soon, it’s the Sermoon D3 3D printer. I don’t have the printer standing right over here so I cannot show you all the details but before somebody is ever going to buy it or maybe some influencers will get it, I will take a closer look at this 3d printer and tell you all about the things that I can find on the website.

The Sermoon D series is tailor-made for industrial design. Be it prototyping, jigs & fixtures making, or design verification, it gets them all covered. It can even mass-produce some small but oddly shaped parts or products. The beauty is that it delivers prints rapidly with stable, high quality in a cost-effective way.

Check the Price on The Sermoon D3 Fully Enclosed Printer:

What are the Features of Sermoon D3?

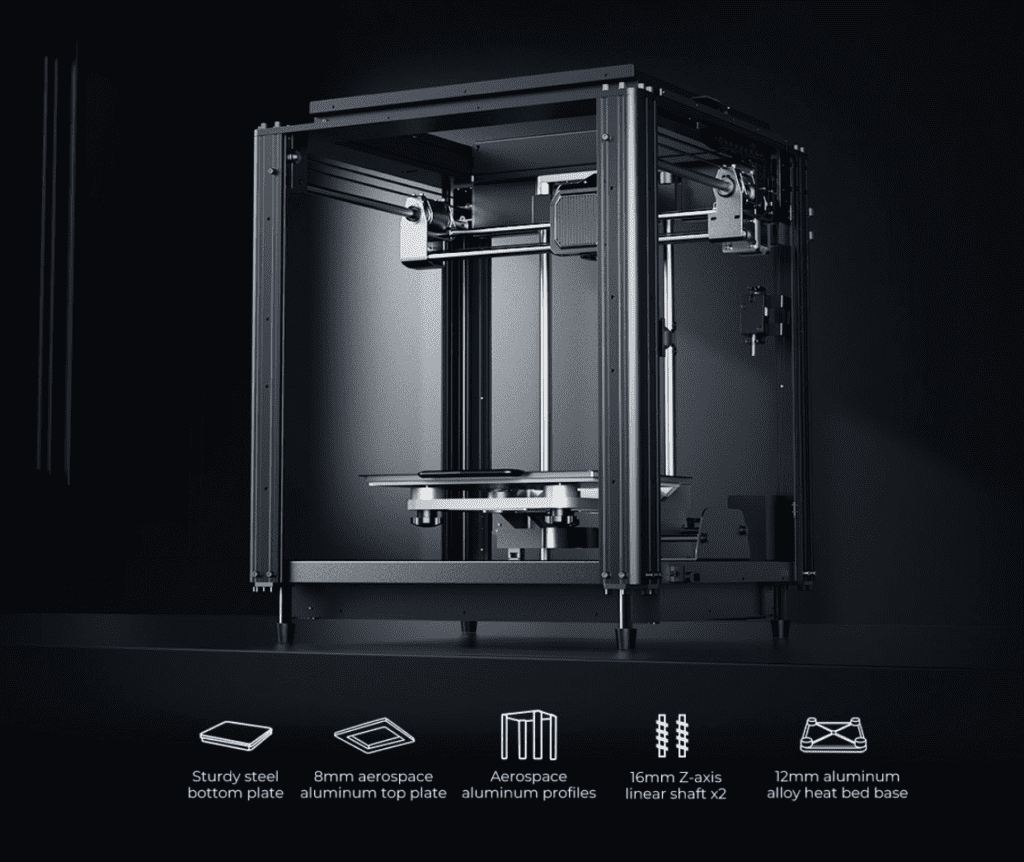

Industrial Grade Stability

Sturdy frame featuring thick metal plates and 4 vertical aerospace aluminum profiles. All the X,Y and Z axis are assisted with stainless steel linear shafts of 60HRC hardness.

The printer holds well against the inertia force of the moving printing head.

• 720h (30 days) non-stop steady printing*
• 8,000h failure-free steady printing*

* Data from Creality Lab

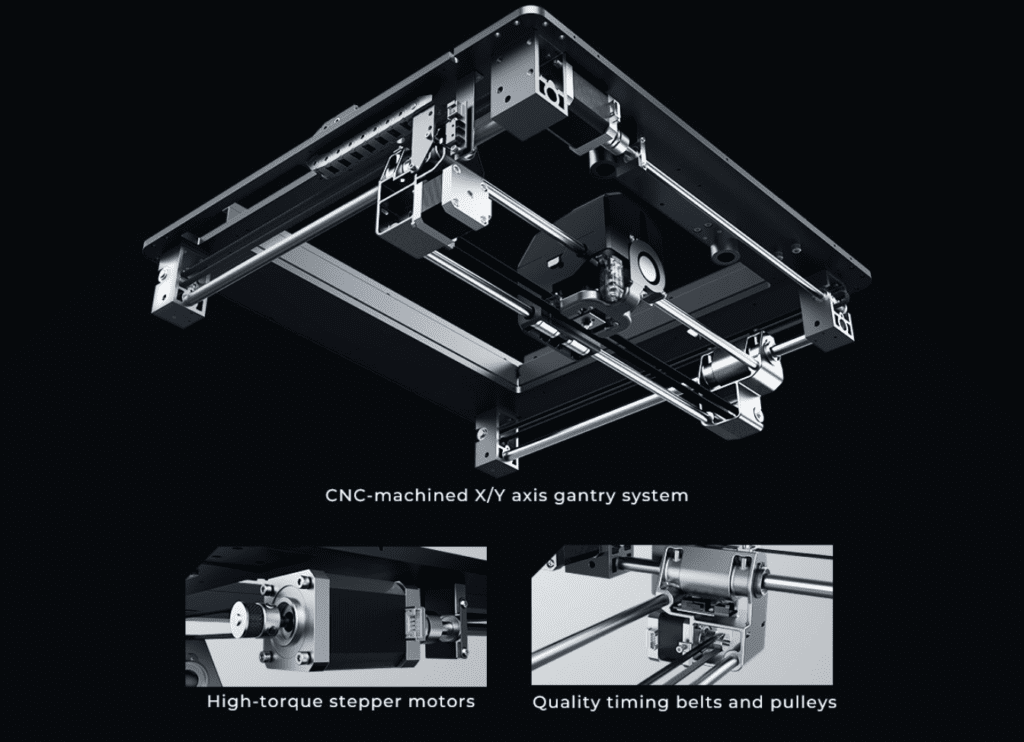

Precision-made to Minimize Mechanic Errors

The integrated XY-axis gantry system is CNC machined with 0.0lmm precision for a seamless fit. The precise high-torque motors and durable timing belts and pulleys further reduce mechanical errors and boost accuracy.

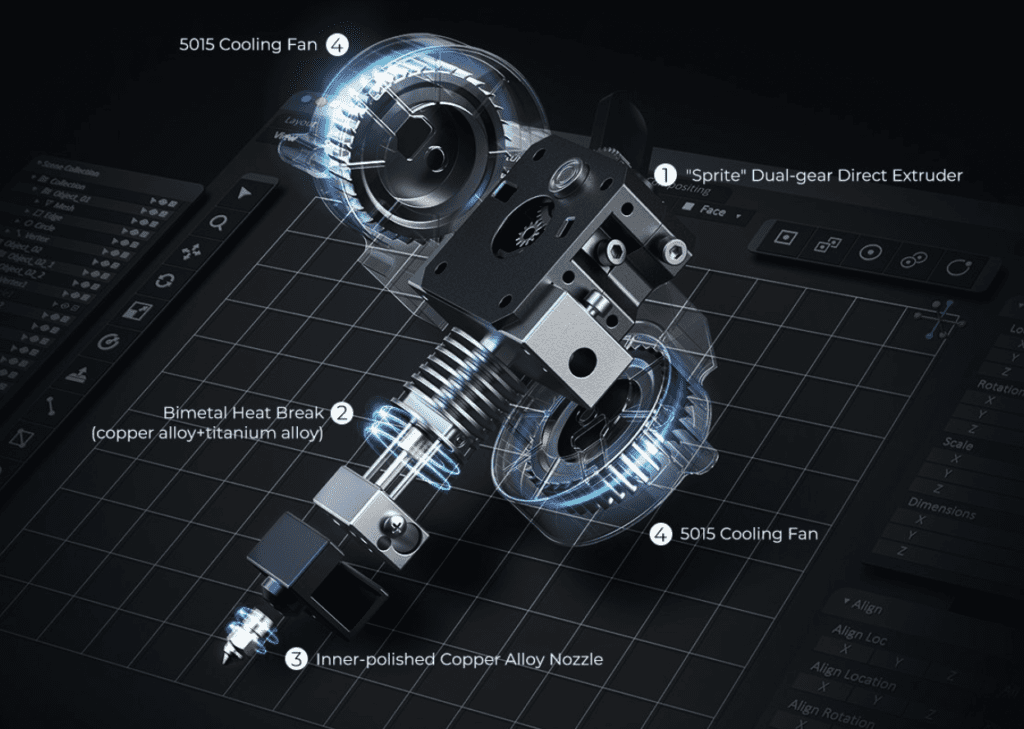

Reliable Extrusion at 300℃ Temperature

The “Sprite”dual-gear direct drive extruder delivers strong extrusion and retraction force. The inner-polished copper alloy nozzle and bi-metal heat break work smoothly at a lasting high temperature with less heat creep. And, it has two large 5015 cooling fans.

14 Filaments at Choice

• Regular Filaments: PLA, PLA-Wood, PETG, PET;
• High-strength Filaments: ABS, PA66, ASA, PC, PC-ABS;
• Flexible Filaments: TPU95A, TPC;
• Wear-resistant Filaments: PLA-CF, PA66-CF, PET-CF.

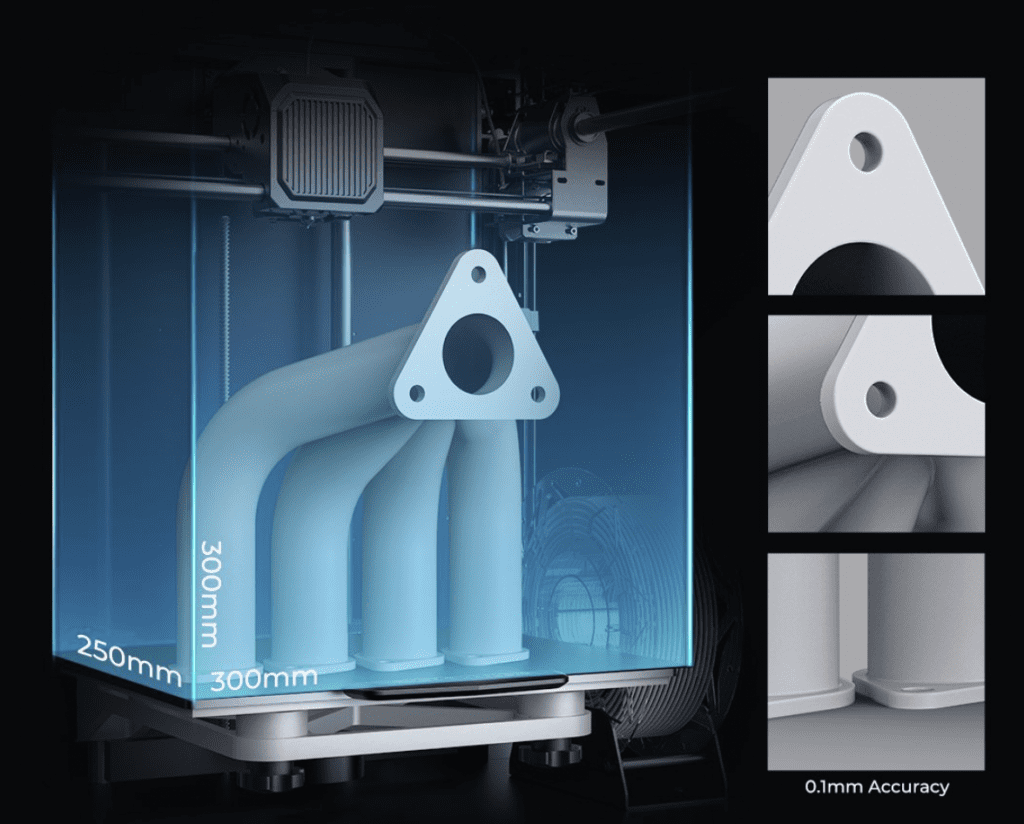

Big But Also Delicate

Sermoon D3 offers a generous 300×250×300mm build volume. Meanwhile, this stable and accurate machine creates breathtakingly delicate prints featuring 0.1 mm accuracy, with layer texture hardly visible.

Up to 5 Times of Printing Speed

The advanced stepper motor driver chip enables 1/256 micro-stepping, realizing smooth printing at up to 5 times of speed. The production capacity will increase by several times for a given period of time.

• PLA-2 times of speed on default*
• PLA-Up to 3 times of speed*
• ABS-Up to 5 times of speed*

* Data from Creality Lab

Connected for a Smarter Way of Working

Remote Printing: Once the printer is connected via WiFi or RJ45 Ethernet port to the LAN or Internet, users can print from a PC or phone with Creality Print software or Creality Cloud App.

Remote Monitoring: With the built-in webcam, users can monitor the printing progress in real-time on the Creality Cloud. Time-lapse filming is also allowed.

Scale It Up With Multi-printers Control

With multiple Sermoon D3 printers connected to the LAN or Internet, models can be batch-printed according to a single command from Creality Print. Users can also divide a large model into small parts and print them with more printers.

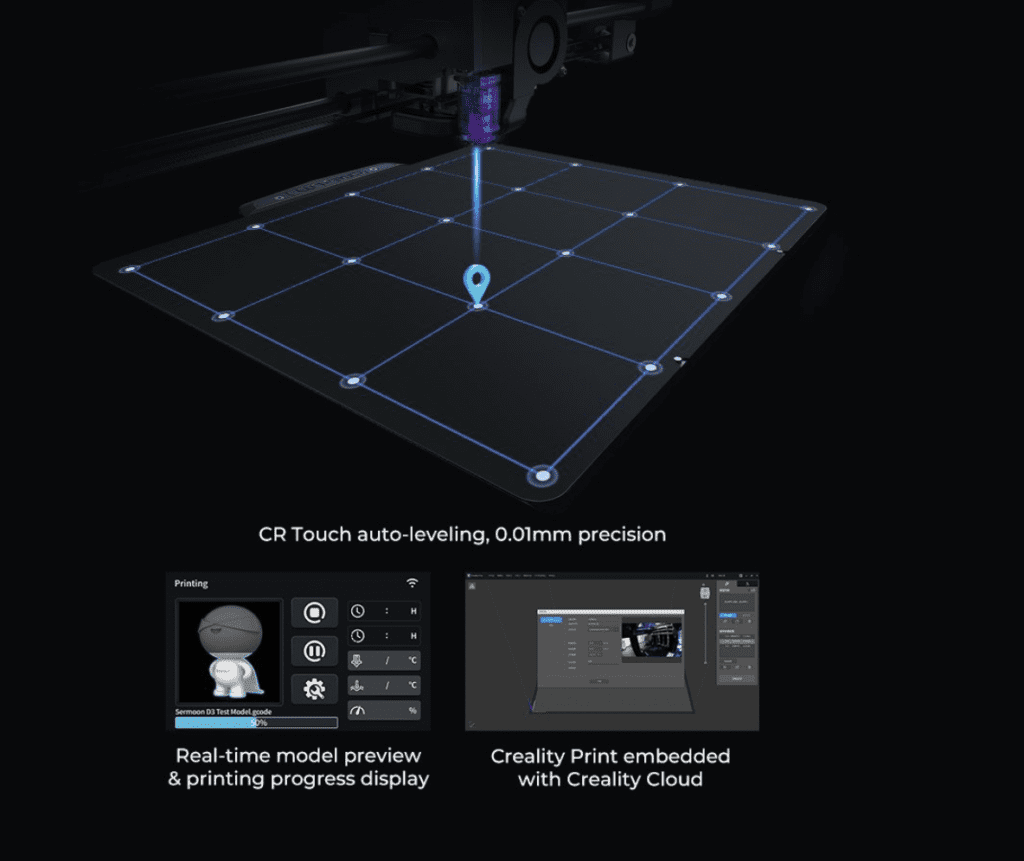

Get Things Streamlined

From one-click model slicing and auto-leveling to model preview and remote control, the entire workflow is streamlined.

Less Cracking with Heat Contained

The heat bed adjustable up to 110C matches well with the heat-retaining enclosure. The print now has an even and hot enveloping atmosphere free from ambient airflow, thus less cracking and edge curling.

Considerate Safety Features

The 2 built-in HEPA air filters will purify PM0.3 particles and toxic compounds generated during printing with ABS and other filaments.

When the door is opened during printing, the printer will send alarms, pause and quickly cool down, so as to prevent scalding or pinching.

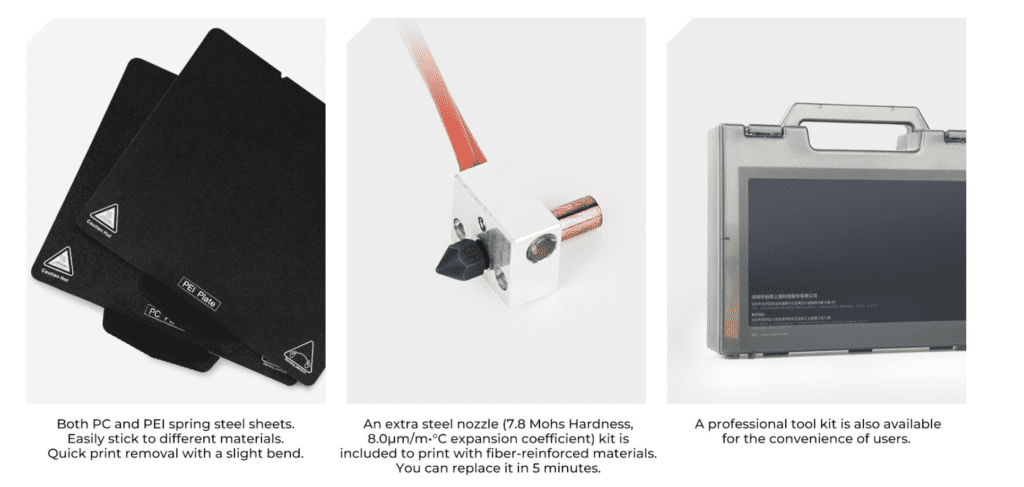

What Are the Free Accessories to Facilitate Work in The Package?

Both PC and PEI spring steel sheets. Easily stick to different materials. Quick print removal with a slight bend.

An extra hardened steel nozzle (7.8 Mohs Hardness, 8.0μm/m•°C expansion coefficient) kit is included to print with fiber-reinforced materials. You can replace it in 5 minutes.

A professional tool kit is also available for the convenience of users.

What are the Specifications of Sermoon D3?

Printing Technology: FDM

Build Volume: 300*250*300mm

Product Dimensions: 553*576*656mm

Package Dimensions: 695*670*700mm

Net Weight: 45kg

Gross Weight: 50kg

Printing Speed: PLA≤150mm/s，ABS≤250mm/s

Printing Accuracy: ±0.1mm

Layer Height: 0.1-0.4mm

Filament Diameter: 1.75mm

File Transfer: USB flash drive, LAN, Creality Cloud

Nozzle Kit Type: Copper Alloy Nozzle Kit, Hardened Steel Nozzle Kit

Nozzle Diameter: 0.4mm

Nozzle Temperature: ≤300℃

Heatbed Temperature: ≤110℃

Build Surface: PC spring steel sheet, PEI spring steel sheet

Extruder Type: “Sprite” dual-gear direct drive extruder

Leveling Mode: CR Touch auto-leveling

Display: 4.3-inch touch screen

Mainboard: Integrated 32-bit silent mainboard

Connectivity: USB2.0, WiFi, RJ45 Cable

Printable File Format: G-Code

Power Loss Recovery: Yes

Filament Runout Sensor: Yes

Pause While Opening Door: Yes

Air Filtration: Yes

Camera: Built-in 1080P HD Camera

Rated Voltage: 100-240V ~, 50/60Hz

Rated Power: 500W

Supported Filaments: PLA, PLA-Wood, PETG, PET, ABS, PA66, ASA, PC, PC-ABS, TPU95A, TPC, PLA-CF, PA66-CF, PET-CF

UI Languages: English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Chinese

Slicing Software: Creality Print, Creality Slicer, Cura, Simplify3D

File Formats for Slicing: STL, OBJ, 3MF

The Recommended Settings for Different Fields

Machinery Industry

Filament: HP ULTRA ABS

Layer Height: 0.28mm

Infill Density: 15%

Time used: 13h

Nozzle temp.: 260℃

Heat bed temp.: 110℃

Infill speed: 250mm/s

Travel speed: 250mm/s

Acceleration: 1000mm/s²

General Manufacturing

Filament: PET-CF

Layer Height: 0.2mm

Infill Density: 15%

Time used: 6h

Nozzle temp.: 300℃

Heat bed temp.: 80℃

Infill speed: 60mm/s

Travel speed: 120mm/s

Acceleration: 500mm/s²

Automotive Industry

Filament: PC-ABS

Layer Height: 0.2mm

Infill Density: 15%

Time used: 20h

Nozzle temp.: 280℃

Heat bed temp.: 110℃

Infill speed: 60mm/s

Travel speed: 120mm/s

Acceleration: 500mm/s²

Medical Industry

Filament: CR-PETG

Layer Height: 0.2mm

Infill Density: 15%

Time used: 8h

Nozzle temp.: 240℃

Heat bed temp.: 80℃

Infill speed: 60mm/s

Travel speed: 120mm/s

Acceleration: 500mm/s²

Education & Research

Filament: HP ULTRA PLA

Layer Height: 0.2mm

Infill Density: 10%

Time used: 29h

Nozzle temp.: 205℃

Heatbed temp.: 60℃

Infill speed: 80mm/s

Travel speed: 120mm/s

Acceleration: 500mm/s²

Parts & Components Making

Filament: CR-PA Carbon

Layer Height: 0.2mm

Infill Density: 15%

Time used: 13h

Nozzle temp.: 250℃

Heatbed temp.: 100℃

Infill speed: 80mm/s

Travel speed: 160mm/s

Acceleration: 500mm/s²

Sermoon D3 Leveling and printing

Where to Buy Sermoon D3?

Currently, we only see that Creality has Sermoon D3 sold in their official store.

Sermoon D3 3D Printer Guides:

What is the difference between the PC/PEI spring steel sheets?

The PEI has a medium level of adhesion and long life, which makes it good for long-term use. The PC has a high level of adhesion, which makes it good for printing special materials that are easy to bend and don’t stick well to the platform.

What is the difference between auxiliary leveling and automatic leveling?

The machine can be leveled in two ways: auxiliary leveling and automatic leveling. Automatic leveling is used to adjust the surface of the printing platform board, while auxiliary leveling is used to make small changes to the platform board. For algorithm compensation adjustment, it is recommended to perform auxiliary leveling first and then automatic leveling.

What consumables can I print on?

The Sermoon D3 supports ABS/PLA/PLA-wood/PA/PET/PET-CF/PC-ABS/TPU/TPE/TPC/ASA/PETG/PC/PLA-CF/PA-CF/PA66 and other consumables.

Does it support remote control?

It supports the use of the Creality Cloud App for mobile phone remote control, supports the use of Creality Print LAN control, and there is a camera inside the machine, that can be viewed remotely.

What’s the printing speed?

It supports PLA printing at speeds of up to 150 mm/s and ABS printing at speeds of up to 250 mm/s. PLA’s best print quality speed is 80 mm/s.

How do I set the slice parameters?

1. You can use CrealityPrint and choose Sermoon D3 to see the recommended slice parameters for 14 consumables.

2. Open the random data in the USB flash drive that comes with the machine, and find the Sermoon D3 recommended consumables slicing parameter table to view the slicing parameter settings.

How to feed the filaments?

1. To replace the same filament, please click “return on the machine screen” and follow the instructions to exit the current material, and then load the consumables to be replaced, click “feed,” and follow the instructions.

2. To replace with a different filament, click on the machine screen to return materials and follow the on-screen instructions.

How much does the Creality Sermoon D3 cost?

Compared to professional 3D printers, Sermoon D3 costs $2,499. The Creality Official Store offers information and pre-orders for the Sermoon D3.
