The Ultimate Guide to 3D Printer Extruders: 2023 Innovations and Insights
In the dynamic world of 3D printing, the extruder stands as the pivotal element that turns digital blueprints into tangible realities. As we step into 2023, the extruder’s role has never been more crucial, with advancements shaping the capabilities and precision of 3D printers.
This guide offers a deep dive into the intricacies of 3D printer extruders, covering the latest types, essential selection criteria, and the top models poised to elevate your printing experience. From hobbyists crafting at home to professionals prototyping in labs, understanding the nuances of extruders is key to mastering 3D printing.
Understanding 3D Printer Extruders
An extruder in a 3D printer is akin to the heart in a living organism — vital for pumping the lifeblood of printing material to construct layers upon layers of a 3D object. The journey from simple, manually-adjusted extruders to today’s automated, precision-driven components mirrors the evolution of 3D printing technology itself.
Modern extruders support a broad spectrum of materials, from standard PLA to exotic composites, catering to an ever-expanding array of applications. The importance of an extruder cannot be overstated; it directly affects print quality, speed, and the ability to use different filament types. Hence, a well-informed choice of extruder can dramatically enhance the efficiency and outcome of your 3D printing projects.
Anatomy of an Extruder
Delving into the anatomy of an extruder reveals a complex assembly where each part plays a critical role. The stepper motor is the driving force, responsible for the controlled movement of the filament. High-precision motors translate to finer control over the filament feed, a must for detailed prints.

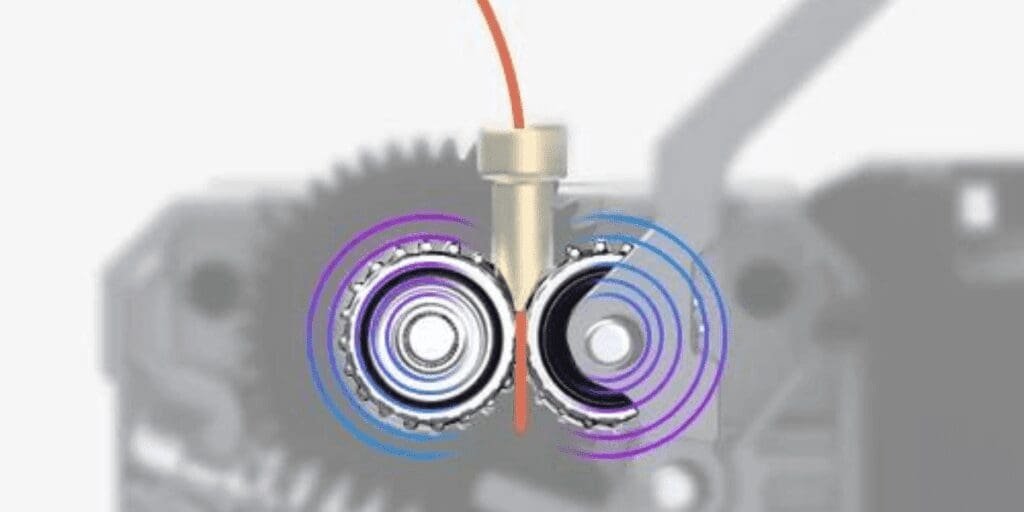

The filament drive gear, often a work of precision engineering, ensures the smooth and consistent delivery of filament to the hotend. The idler exerts just enough pressure to feed the filament without compressing it too much, which is crucial for maintaining its integrity.
At the core of the extruder is the hotend, composed of a heater block, a thermistor, and a nozzle. The heater block brings the filament to the desired temperature, the thermistor monitors this temperature to maintain consistency, and the nozzle is the exit point where the melted filament is deposited layer by layer. Nozzles come in various sizes, affecting the resolution and strength of the printed object.
The heat sink and cooling fan assembly prevent overheating, which could lead to issues like heat creep, where the filament softens too early in the process, leading to clogs and jams.
Each component must work flawlessly together to achieve the best printing results. Regular maintenance, such as cleaning the nozzle and ensuring the gears are free of debris, is essential to keep the extruder assembly functioning optimally.
Types of Extruders
The primary extruder types — direct and Bowden — cater to different printing preferences. Direct extruders are mounted directly on the print head, providing immediate control of the filament. This close proximity allows for more accurate extrusion, making direct extruders ideal for detailed work and flexible materials. However, their weight can impact the printer’s speed and require a sturdier frame to mitigate vibrations.
Bowden extruders, in contrast, are mounted on the printer’s frame, with a PTFE tube guiding the filament to the hotend. This setup reduces the print head’s weight, allowing for higher speeds and less ‘ringing’ or vibration in the print. However, the increased distance from the extruder to the hotend can introduce issues with retraction and precision.
Dual extruder systems take complexity up a notch, enabling the printing of multiple materials or colors in a single object. While offering unparalleled creative possibilities, they demand careful calibration and can increase the likelihood of oozing and stringing if not managed properly.
Selecting the Right Extruder
Choosing an extruder is a decision that impacts your entire printing process. First and foremost, the extruder must be compatible with your printer — physical fit, control systems, and firmware all need to align. The filament size, typically 1.75 mm or 3 mm, dictates your material choices and should match the extruder’s specifications.
Assess your printing needs: Do you prioritize detail over speed? Do you frequently use flexible or composite materials? Direct extruders are better for precision and flexible materials, while Bowden setups are preferred for speed and straightforward prints. Budget is also a consideration — extruders range from affordable basics to premium models with advanced features. However, investing in a higher-quality extruder can pay off in reliability and print quality.
Ease of use is another factor. Some extruders are plug-and-play, while others might require modifications to your setup or even firmware updates. Durability is also key, as a well-built extruder will save time and money in the long run by reducing the need for replacements and troubleshooting.
Common Challenges and Solutions
Even the best extruders can encounter problems. Filament grinding can occur when the drive gear cannot adequately grip the filament, often due to wear or incorrect tension. Regular cleaning and adjustment can prevent this. Filament clogging, another common issue, may arise from impurities in the filament or incorrect temperatures. Keeping the nozzle clean and ensuring accurate temperature control can mitigate clogging.
Overheating is a problem often rooted in poor cooling or overzealous motor settings. Ensuring adequate cooling and calibrating the stepper motor current can help. Calibration is vital; a poorly calibrated extruder can lead to under- or over-extrusion, affecting print quality. Regular calibration checks are essential for consistent performance.
The Best Extruders on the Market
The E3D Hemera represents a pinnacle in extrusion system design, offering a potent combination of a high-performance V6 HotEnd and a novel direct drive mechanism. Its dual-drive setup ensures exceptional filament grip and control, particularly with flexible materials. The system’s compact integration and user-friendly features, such as easy tension adjustment and efficient heatsink design, make it a standout choice for 3D printing enthusiasts seeking reliability and convenience.
- Dual-Drive Compact
- Integrated System Filament
- Constraint Like No Other
- A Never-Before-Seen Heatsink
The BIQU H2 V2S is an upgraded extruder offering lightweight design at 195g, enhancing precision due to reduced inertia. It includes additional mounting holes for accessories and an improved filament switch lever for ease of use. Its all-metal hot end supports high-temperature printing up to 270℃, with potential for up to 500℃, and boasts a titanium and copper alloy heat break for superior heat resistance.
The optimized heat sink ensures efficient cooling, essential for long prints. Compatibility is broad, with an adjustable screw tensioner for various 1.75mm filaments and the ability to fit multiple 3D printers with a DIY bracket. The powerful dual stainless steel gear system, with a 7:1 gear ratio, delivers impressive extrusion force.
- ✔️Upgraded Version of Stainless Steel Gear: using bimetallic tube (copper alloy + GRADE5 titanium alloy), high temperature resistance, durability,…
- ✔️All-in-one Design & High Precision: The short-range extruder integrates the hot end of the nozzle, extruder, stepping motor, cooling fan, etc.,…
- ✔️With a smoothness of Ra0.4 on the inner walls of the throat and nozzle, it prevents clogging. H2 V2S uses a silicone protector with a high…
- ✔️Lightweight & Compact & Powerful: BIQU H2 V2S extruder weighs only 195 grams, which effectively overcomes the short-stroke print head’s heavier…
- ✔️Wide Compatibility: BIQU H2 V2S extruder has wide compatibility and can be installed in common 3D printers on the market, such as: BIQU B1,…
The Bondtech BMG extruder is a high-performance, high-resolution extruder that maintains a low weight of 75g without the motor. It features the company’s well-regarded Dual-Drive technology for reliable material feeding without issues. Versatile in its use, the BMG is suitable for both bowden and direct drive systems and has a built-in fitting for E3D hotends, complementing Nema17 stepper motors. Note that the bowden adapter is not part of the package and must be purchased separately.
- The Bondtech BMG extruder combines high performance and resolution with low weight.
- Together with our proven and highly celebrated Dual-Drive technology you can expect problem free material feeding.
- The BMG works in both bowden and direct driven applications. Built-in fitting for the E3D hotend and fits Nema17 stepper motors.
- Please mind the bowden adapter is not included.
- Weight without motor: 75g
The Direct Drive Extruder from Micro Swiss is a drop-in upgrade specifically designed for the Creality Ender 5 series of 3D printers, ensuring full compatibility with Ender 5, Ender 5 Pro, and Ender 5 Plus models. It features a high torque with a 3:1 gear ratio, enhancing the printer’s performance. The kit includes a master extruder assembly, adaptation plate, stepper motor, fan shroud, custom extension cable, hotend assembly, and the necessary hardware for installation.
Notably, this extruder boasts the industry’s shortest filament path, under 41mm, due to its Bevel Gear design and strategic motor placement. This compact design not only reduces overhang but also increases the rigidity of the system, promising an improved printing experience. The entire assembly is made in the USA by Micro Swiss.
- Drop in Direct Drive Extruder Ender 5 Series. It is Fully Compatible with Creality Ender 5 / Ender 5 Pro / Ender 5 Plus 3D Printers.
- High Torque: 3:1 Gear ratio
- This kit comes with everything you need to upgrade your printer to a Direct Drive Extruder. It comes with 1x Master Extruder Assembly 1x Adaptation plate 1x Stepper motor 1x Fan Shroud 1x Custom extension cable 1x Hotend assembly and hardware kit.
- This extruder overcomes the shortcomings of all current counterparts on the market, to create an optimal printing experience for everyone. With the Bevel Gear design, we are able to achieve the industry shortest filament path (less than 41mm). The unique motor placement allows for highly compact, low overhang design. This further increases system rigidity.
- It is made in the USA by Micro Swiss in-house.
Creality’s Titan Extruder is a new component designed for seamless integration into their 3D printer ecosystem. It enables users to upgrade their printer’s extrusion system without the need for modifications, thanks to its simple installation process. The extruder supports high-temperature printing up to 300℃, making it suitable for a wide range of filaments including TPU, PLA, ABS, PETG, PC, PA, and other flexible options. It facilitates high flow and can handle printing speeds up to 300mm/s, aided by a 25% larger melting zone that ensures smooth printing, even with a 0.8mm nozzle. The Titan Extruder boasts wide compatibility with various Ender 3D printer models.
- 100% Creality Official – The Titan Extruder is latest addition to our modular ecosystem, which means it works perfectly with your installed printer…
- Up to 300℃ High Temperature Printing – With scientific structure design and material selection, the overall temperature can reach 300℃to…
- Support High Flow and 300mm/s High Speed Printing -The overall melting zone is increased by 25%, which offer a smooth printing experience even with…
- Wide Compatibility – Easy to install and applicable for a variety of models, such as Ender 3/ Ender 3 V2/ Ender 3 Pro/ Ender 3s/ Ender 3 Max/ Ender 2…
- Creality 3D Official Store – We are the ONLY Creality 3D Official store. There are more than 20 engineers for after-sales service and provide 24/7…
This guide has traversed the intricate world of 3D printer extruders, illuminating the path to choosing the right one for your needs. With the insights and innovations for 2023 laid out, you’re well-equipped to enhance your 3D printing endeavors. Embrace the continuous evolution of this technology, engage with the community to share your experiences, and never stop pushing the boundaries of what’s possible in 3D printing.
