How Resin Printers Work: A Comprehensive Guide

how resin printers work

Introduction

Dive into the dynamic world of resin 3D printing with our all-encompassing guide. Ideal for both newcomers and seasoned enthusiasts, we delve into the intricacies of resin printing technology, celebrated for its precision in crafting detailed, smooth-surfaced prints. In this guide, we’ll cover resin printing basics, printer components, processes on how resin printers work, and various technologies, and offer practical tips. It’s a valuable resource for hobbyists and professionals alike, keen to master resin printing.

The Basics of Resin Printing

Resin printing stands out for its exceptional precision and detail-rich prints. It leverages a liquid photosensitive resin, transformed under UV light. The process starts with a digital 3D model, processed into thin layers, guiding the printer. In the printer, the build plate dips into a resin vat, with UV light selectively solidifying each layer. The process culminates in post-processing, where the print is rinsed and further cured for strength and durability.

Components of a Resin 3D Printer

how resin printers work 2

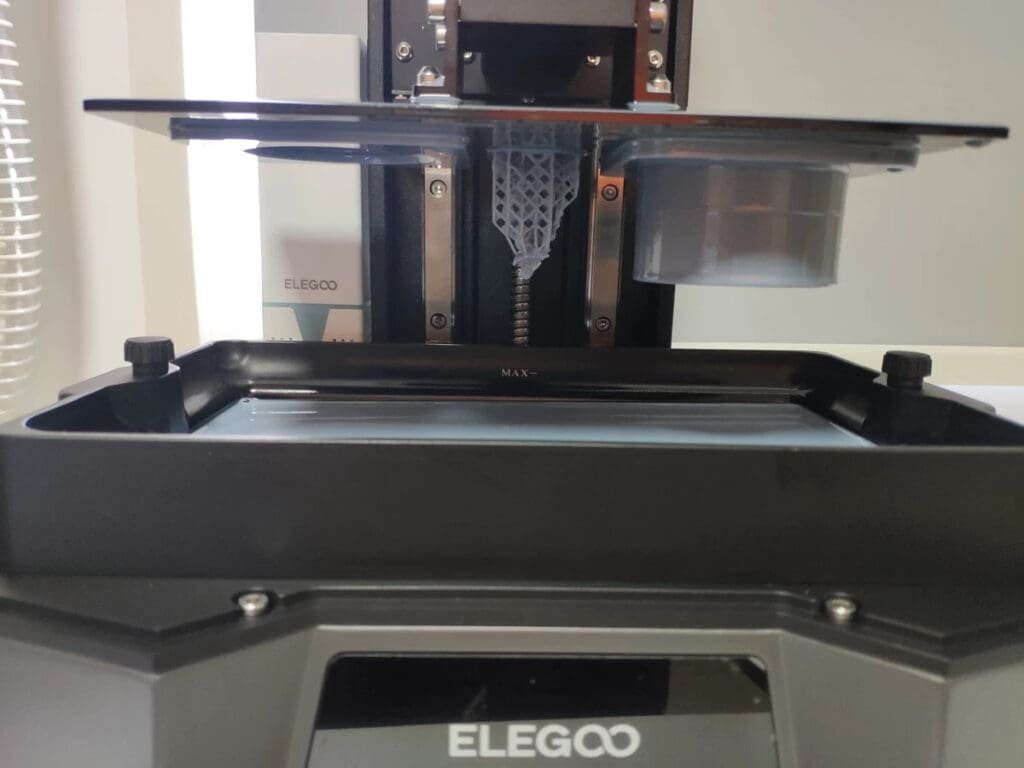

Resin printers are comprised of several key components that work together to create high-quality 3D prints. Understanding these components is essential for anyone interested in resin printing. Here are the main components you’ll find in a resin printer:

Resin Vat: This is a container that holds the liquid resin during the printing process. It is typically made of a transparent material, such as acrylic or glass, to allow for easy monitoring of the printing process.

Build Plate: The build plate is the platform on which the 3D model is built. It is usually made of a sturdy material, such as aluminum, and can be adjusted in height to ensure precise layering.

UV LCD Screen: The UV LCD screen is a crucial component that emits UV light to cure the liquid resin. It displays the image of each layer of the 3D model, allowing for precise and accurate curing.

Linear Rails: These rails provide smooth and precise movement for the build plate and other moving parts of the printer. They ensure that the layers are aligned correctly and that the print quality is maintained.

Display – Touchscreen: The touchscreen display allows users to interact with the printer and control various settings, such as print speed, layer thickness, and curing time. It provides a user-friendly interface for a seamless printing experience.

Thumb Screws: Thumb screws are used to secure the build plate and resin vat in place. They allow for easy adjustment and ensure that the components remain stable during the printing process.

By understanding the components of a resin printer, you can gain a better understanding of how these machines work and how to optimize their performance. Each component plays a crucial role in ensuring the accuracy, precision, and overall quality of your resin prints.

how resin printers work?

Resin printing is a fascinating and intricate process that allows for the creation of highly detailed and precise 3D prints. Understanding the resin printing process is essential for achieving successful prints and maximizing the capabilities of your resin printer. So how resin printers work?

The process begins with the preparation of the 3D model in slicing software. The model is then sliced into thin layers, which will be printed one by one. These layers are sent to the resin printer, where the magic happens.

Once the resin printer is ready, a vat of photosensitive liquid resin is filled. The build plate, which serves as the base for the print, is lowered into the resin. The printer’s UV light source then shines through a transparent LCD screen, projecting the first layer of the model onto the resin.

The UV light causes the resin to harden and solidify, creating the first layer of the print. After the layer is complete, the build plate is raised slightly, and the process is repeated for the next layer. This layer-by-layer approach allows for the creation of complex and detailed prints.

Throughout the printing process, it is crucial to monitor the print and ensure that each layer is properly cured. Any issues or failures can be addressed by adjusting the printer’s settings or making changes to the model’s design.

Once the printing is complete, the print is carefully removed from the build plate and cleaned to remove any excess resin. Depending on the type of resin used, the print may also require post-curing to fully harden and strengthen the material.

The resin printing process requires attention to detail and precision, but with practice and experience, you can achieve stunning and high-quality prints. By understanding the intricacies of the resin printing process, you can unlock the full potential of your resin printer and bring your designs to life.

how resin printers work 3

Types of Resin Printing Technologies

Resin printing technologies have come a long way, offering a range of options to suit different needs and preferences. Let’s take a closer look at some of the most common types of resin printing technologies available today.

Stereolithography (SLA)

SLA printers utilize a UV laser to selectively cure liquid resin layer by layer. This results in highly detailed and accurate prints with excellent resolution and surface finish. SLA printers are particularly well-suited for applications that require intricate details, such as jewelry making, dental models, and prototyping.

Digital Light Processing (DLP)

DLP printers, on the other hand, use a digital light projector to expose an entire layer of resin at once. This allows for faster printing speeds compared to SLA printers. With their high-resolution prints, DLP printers are commonly used in industries such as dentistry, jewelry, and product design.

Multi-Jet Printing (MJP)

MJP printers work by jetting droplets of liquid resin onto a build platform, which are then cured using UV light. This technology offers high resolution and is ideal for producing small, intricate parts with fine details. MJP printers are commonly used in industries such as aerospace, automotive, and medical.

Continuous Liquid Interface Production (CLIP)

CLIP is a proprietary resin printing technology developed by Carbon. It utilizes a combination of UV light and oxygen to rapidly cure liquid resin. CLIP printers can produce parts at incredible speeds, making them suitable for large-scale production. The prints have high accuracy and mechanical properties comparable to injection-molded parts. CLIP technology finds applications in industries such as automotive, consumer goods, and healthcare.

Digital Vat Photopolymerization (DVP)

DVP printers use a projector to selectively expose the resin to UV light, curing it layer by layer. This technology offers high resolution and is suitable for producing complex, detailed parts. DVP printers are commonly used in industries such as jewelry, dentistry, and engineering.

Each resin printing technology has its own unique strengths and limitations, catering to different requirements and applications. By understanding the various types of resin printing technologies available, users can make informed decisions and choose the one that best suits their specific needs.

Choosing the Right Resin for Your Prints

When it comes to resin printing, choosing the right resin for your prints is crucial for achieving the desired results. There are various factors to consider when selecting a resin, such as the type of project, the level of detail required, and the specific properties of the resin.

One important consideration is the color of the resin. While many resins come in a clear or translucent form, there are also options available in a wide range of colors. This allows you to add a vibrant touch to your prints or create models that closely resemble the desired end product.

Another factor to consider is the curing time of the resin. Some resins cure faster than others, which can impact the overall printing time. If you’re working on a time-sensitive project, opting for a resin with a shorter curing time can be beneficial.

Additionally, it’s important to consider the mechanical properties of the resin. Some resins offer enhanced strength and durability, making them suitable for functional prototypes or parts that will undergo stress or strain. On the other hand, there are resins specifically designed for flexibility, which are ideal for creating objects that require some degree of elasticity.

Furthermore, you should also take into account the compatibility of the resin with your specific printer. Different printers may have different requirements in terms of resin viscosity, curing wavelength, or exposure settings. It’s essential to choose a resin that is compatible with your printer to ensure optimal printing results.

Lastly, it’s worth considering the safety aspects of the resin. Resin printing involves working with chemicals that can be harmful if not handled properly. It’s crucial to choose a resin that is safe to use and follow all recommended safety precautions, such as wearing gloves and working in a well-ventilated area.

By carefully considering these factors, you can choose the right resin for your prints and achieve the desired results in your resin printing projects.

Tips and Best Practices for Successful Resin Printing

Resin printing can produce incredibly detailed and high-quality prints, but it does require some specific techniques and precautions to ensure successful results. Here are some tips and best practices to help you get the most out of your resin printing experience:

Choose the right resin: Different resins have different properties, such as flexibility, strength, and color. Make sure to select a resin that is suitable for your intended application and desired outcome.

Level your build plate: Properly leveling your build plate is crucial for achieving accurate and consistent prints. Use a leveling tool or follow the manufacturer’s instructions to ensure your build plate is perfectly parallel to the LCD screen.

Clean your prints thoroughly: After each print, it is essential to clean your prints thoroughly to remove any uncured resin. Rinse your prints in isopropyl alcohol and use a soft brush to gently remove any excess resin. This will help improve the final appearance and strength of your prints.

Use supports effectively: Supports are structures that help hold up overhanging or delicate parts of your print. Properly positioning and generating supports is crucial to ensure successful printing and minimize the need for post-processing.

Cure your prints properly: After cleaning, it is important to cure your prints to ensure they reach their maximum strength and stability. Follow the manufacturer’s instructions for curing times and methods, whether it be using a UV chamber or natural sunlight.

Monitor and maintain your printer: Regularly check and clean your printer’s components, such as the FEP film and resin vat, to ensure optimal performance. Keep an eye on the resin level and replace it when necessary.

Experiment and iterate: Resin printing can be a trial-and-error process, especially when it comes to finding the right settings, exposure times, and supports. Don’t be afraid to experiment and iterate to achieve the best results.

Remember, resin printing requires careful handling and safety precautions. Always wear gloves and protective eyewear when working with resin, and ensure proper ventilation in your workspace.

By following these tips and best practices, you can enhance your resin printing experience and achieve stunning, high-quality prints. Happy printing!
