A Comprehensive Guide to 3D Printer Nozzle

3D Printer Nozzle
A Comprehensive Guide to 3D Printer Nozzle 15

We all know that the nozzle is one of the most crucial components in FDM 3D printing equipment. it deposits the filament and determines the speed, strength, and precision of the final print. So today we will introduce all things about 3D printer nozzles including it’s sizes and impact on print quality. We’ll also cover the importance of nozzle compatibility with different filament materials and the potential for upgrading your printer to accommodate different nozzle sizes.

Whether you’re a beginner or an experienced 3D printing enthusiast, this guide will equip you with the knowledge you need to choose the best 3D printer nozzle for your specific needs. So let’s dive in and explore the fascinating world of 3D printer nozzles!

Understanding Nozzle Sizes

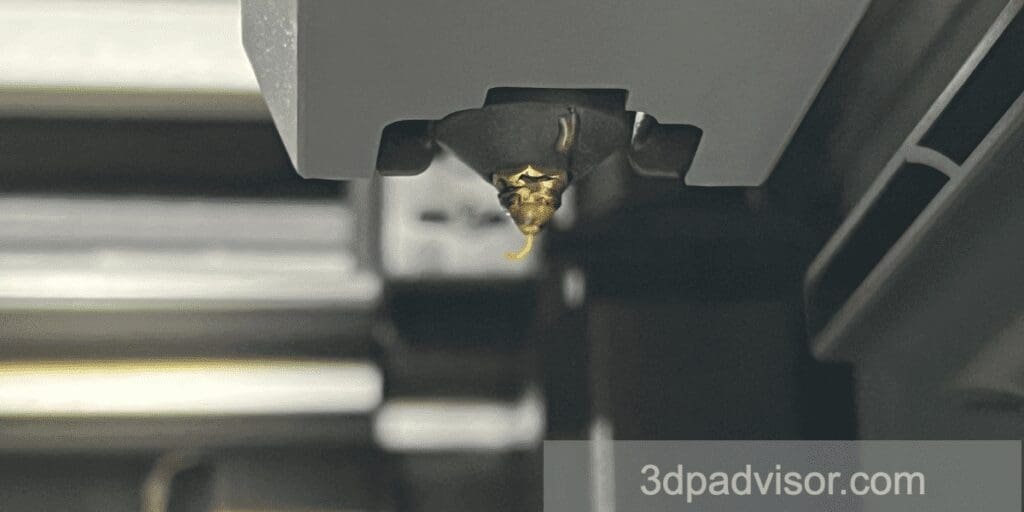

10 1
A Comprehensive Guide to 3D Printer Nozzle 16

3D printer nozzle size difference

When it comes to 3D printer nozzles, understanding nozzle sizes is crucial for achieving the desired print quality. The nozzle size refers to the diameter of the opening through which the filament is extruded onto the build plate.

The most commonly used nozzle size for 3D printers is .4mm 3D Printer Nozzle, which offers a good balance between speed and precision. A larger nozzle diameter will result in faster printing speeds, but the precision of the print may be compromised. On the other hand, a smaller nozzle diameter offers greater precision but may increase the print time.

What Else Can Affect Print Quality?

It’s important to note that the nozzle size is not the only factor that determines the print quality. The printer itself and the filament material also play significant roles. For example, a printer like the Ender 3 can produce solid prints at an average speed of 45mm/s, while a Bambu Lab X1 can achieve the same quality prints at 250mm/s with the right settings.

If you want to print with a layer height of 0.6mm or more, it is recommended to use a nozzle with a larger diameter, such as a 0.6mm nozzle. However, it’s crucial to ensure that the maximum extrusion width of the nozzle does not exceed the layer height.

When choosing a 3D printer nozzle, it’s essential to consider its compatibility with the filament material you intend to use. Brass nozzles are the most commonly used and are suitable for printing with most materials, including PLA and ABS. However, if you plan to print with abrasive filaments like carbon fiber or metallic filaments, it’s advisable to use stainless steel or hardened steel nozzles for their increased durability.

Types of Nozzles

When it comes to 3D printer nozzles, you have a multitude of options, each boasting distinct features and superior benefits. Possessing knowledge of the various types will empower you to select the perfect nozzle tailored to your precise printing requirements.

Brass Nozzles

Brass nozzles are the most common and widely used type of nozzle. They are affordable, have excellent thermal conductivity, and are suitable for printing with most materials, including PLA and ABS. However, they are not recommended for abrasive filaments as they can wear down over time.

Bestseller No. 1
Hourleey 2 Set Heavy Duty Brass Hose Nozzle, Pressure Jet Nozzle with Hose Shutoff Valve, 3/4″ GHT Nozzles for Garden Hose, Car Wash, Extra 4 Rubber Washers
  • Package Included: 2 PCS high pressure hose jet nozzles, 2 PCS hose shut off valves, 4 PCS extra…
  • Constructed from Solid Brass: Built entirely of solid brass, this robust construction is capable of…
  • Includes Hose Shut-Off Valve: This sprayer nozzle features a convenient hose shut-off valve,…
  • Compatible with 3/4” US Standard Hoses: Featuring a straightforward design, our solid brass hose…
  • Engineered for Leak-Proof Performance: Equipped with 4 rubber washers, the garden hose nozzle is…

Hardened Steel Nozzles

If you plan to print with abrasive filaments like carbon fiber or metal-infused PLA, a hardened steel nozzle is a great choice. These nozzles are more durable and can withstand the abrasive nature of these filaments without wearing down. They are a reliable option for long-lasting performance.

SaleBestseller No. 1
3D Printer Nozzles, 11PCS Hardened Steel MK8 Extruder Nozzles 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm with Storage Box Socket for CR-10/ Ender 3/5, Ender 3/ V2 Ender3 pro, Aquila
  • Premium Quality–MK8 nozzles are made of high quality Hardened Steel.Heavy duty and provide a long…
  • Applicability and Compatibility–MK8 extruder nozzles fit for 3D Printer Makerbot Creality CR-10,…
  • Precise Design–3d printer nozzles can prevent print head from leakage effectively and produce…
  • Parameter–Input diameter 1.75mm; output diameter 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm, 1.0mm;…
  • Excellent service: Kingroon is a customer-centric company, we have been committed to providing…

Ruby Tipped Nozzles

For the highest level of durability and performance, consider a ruby tipped nozzle. These premium nozzles are designed to handle even the most abrasive filaments, such as boron carbide. Ruby tipped nozzles offer exceptional wear resistance and can provide consistent and high-quality prints over an extended period.

Bestseller No. 1
Ruby Nozzles for 3D Printers MK8 E3D Prusa Ender3 (E3DV6, 0.4mm)
  • Compatibility: Compatible with all 3D Printers that use E3D V6 nozzle;
  • Genuine Ruby: MOD3DP takes geniune ruby as the tip material for all its ruby series nozzles. It…
  • Excellent Thermal Conductivity: Brass body can guarantee an excellent thermal conductivity from your…
  • Funnel Shaped Nozzle: MOD3DP’s Ruby nozzle is carefully cut and polished to have funnel shape…
  • One For Any Material: Having great performance in printing highly abrasive materials, less abrasive…

It’s important to note that while brass nozzles are suitable for most materials, hardened steel and ruby tipped nozzles are recommended for printing with abrasive filaments. Additionally, make sure to check the compatibility of the nozzle with your specific 3D printer model before making a purchase.

Nozzle Shapes and Sizes

The geometry of the nozzle tip is paramount in determining the quality and precision of the output from a 3D printer. Typically, there are three prevalent nozzle tip configurations to consider: conical, cylindrical, and flat. These configurations are not interchangeable; each serves specific printing scenarios, influencing the efficacy with which the printed material is deposited. The selection between these tip shapes should be guided by the particular application and desired resolution of the 3D print.

Conical nozzles

With their pointed tips, conical nozzles are perfect for printing small details and intricate designs that require high precision. They can produce sharp edges and precise details, but it’s important to note that they may be prone to clogging, especially when using materials that contain particles or fibers.

New
12PCS 0.4mm Hotend Nozzles kit for Prusa I3 MK4, 1PCS Hardened Steel Nozzle, 11PCS Brass Nozzles, 5PCS Silicone Covers and 4PCS Stainless Nozzle Cleaning Needles, 3D Printer Hot End Extruder Nozzles
  • Compatible Model: This MK4 nozzle kit, silicone cover and stainless cleaning needle is made for…
  • Package Included: 0.4mm Brass Nozzle*11, 0.4mm Hardened steel Nozzle*1, Silicone Cover*5, Nozzle…
  • 0.4mm Hotend Nozzle: The nozzles kit is made of premium material, which is higher hardness and…
  • Silicone Covers: This silicone sock is made of high quality silicone. The silicone cover not only…
  • Stainless Cleaning Needle: the nozzle cleaning needles are made of high quality stainless steel,…

Cylindrical nozzles

Cylindrical nozzles have a straight, uniform diameter and are the most commonly used nozzle shape. They offer a good balance between speed and precision, making them suitable for a wide range of printing applications. These nozzles are versatile and reliable, making them a popular choice among 3D printing enthusiasts.

New
Diamondback Nozzles – Neptune 4 Plus/Max Compatible – Polycrystalline Solid Diamond Tip 3D Printer Nozzles, Improved Extrusion, Any Filament, Wear Resistant, Layer Adhesion, USA Made (0.4mm)
  • HIGH QUALITY: The Diamondback Science team has been developing world-class diamond products for the…
  • PRECISION PRINT: Our nozzles rely on a solid diamond tip to improve precision 3D printing. The tip…
  • ANY FILAMENT: Diamondback relies on a proprietary and patented diamond technology. This breakthrough…
  • LONGER LIFE: The Polycrystalline Diamond (PCD) used in every DiamondBack nozzle will significantly…
  • SPECIFICATIONS: It is recommended that DiamondBack Nozzle users follow the operating specifications…

Flat nozzles

With their flattened tips, Flat nozzles are ideal for printing large, flat surfaces. They can extrude wider lines, making them useful for printing objects that require a smooth finish. If you’re working on projects that involve printing large, flat objects, a flat nozzle can help you achieve the desired results.

Bestseller No. 1
Comgrow 25PCS MK8 Ender 3 V2 Nozzles 0.4MM, 3D Printer Brass Hotend Nozzles with DIY Tools Storage Box for Creality Ender 3/Ender 3 Pro/Ender 3 Max/5 Pro/Ender 3 S1/Ender 3 Neo/CR 10 Series 3D Printer
  • Premium Quality – 25 PCs high-quality brass nozzles, good abrasion resistance, heat resistance, and…
  • Package List – The 3D printer extruder nozzles come with 0.4 mm brass nozzles*25, nozzle cleaning…
  • Strong Practicability – Storage box for easy carrying and storage of small accessories.The nozzle…
  • High Precision – Input diameter 1.75mm, smooth inner wall, extruder nozzle diameter error less than…
  • Wide Compatibility – Suitable for Creality Ender 3/Ender 3 Pro/Ender 3 V2/Ender 3 Max/Ender 5…

In addition to the shape of the nozzle tip, the size of the nozzle also plays a crucial role in the printing process. Nozzle sizes typically range from 0.2mm to 1.0mm, with the most commonly used size being 0.4mm. A smaller nozzle diameter offers more precision but increases print time, while a larger nozzle diameter allows for faster printing speeds but sacrifices some precision.

When choosing a nozzle size, it’s important to consider your specific printing requirements. If you’re printing small, intricate designs, a smaller nozzle size may be more suitable. On the other hand, if you’re working on projects that require faster print speeds, a larger nozzle size may be a better choice.

Maintaining Your Nozzle

Taking proper care of your 3D printer nozzle is essential to ensure consistent and high-quality prints. By following a few simple maintenance steps, you can prolong the lifespan of your nozzle and avoid potential issues.

Regular Cleaning: After each printing session, it is important to clean your nozzle to remove any residual filament. Use a fiber cloth to gently wipe the nozzle while it is still warm and the plastic remains soft. This will prevent any build-up that could lead to clogs or poor extrusion.

Deep Cleaning: If your nozzle shows signs of partial clogging or has been heavily used, a more thorough cleaning may be required. Isopropyl alcohol is an effective solution for dissolving any remaining plastic inside and outside the nozzle. Soak the nozzle in the alcohol for a few minutes, then use a thin needle to remove any stubborn material.

Amazon Basics 99% Isopropyl Alcohol For Technical Use, Unscented, 16 Fl Oz (Pack of 12)

Nozzle Replacement: Over time, nozzles can become worn down or damaged, affecting the quality of your prints. If you notice a decrease in print quality or experience frequent clogs, it may be time to replace your nozzle. Refer to your printer’s user manual or manufacturer’s website for specific instructions on how to replace the nozzle.

Conclusion

Arm yourself with the insights from this extraordinary guide, and you’ll be equipped to select the most exceptional 3D printer nozzle that aligns perfectly with your individual dreams and printing endeavors. Embrace the captivating realm of 3D printer nozzles and watch in awe as your creative visions burst forth into the tangible world in all three glorious dimensions!
